RFID proximity card readers

TME's offer includes Netronix RFID proximity card reader modules.

Netronix is a Polish manufacturer specialising in the design and manufacturing of electronic modules for radio-frequency identification" of objects and people.

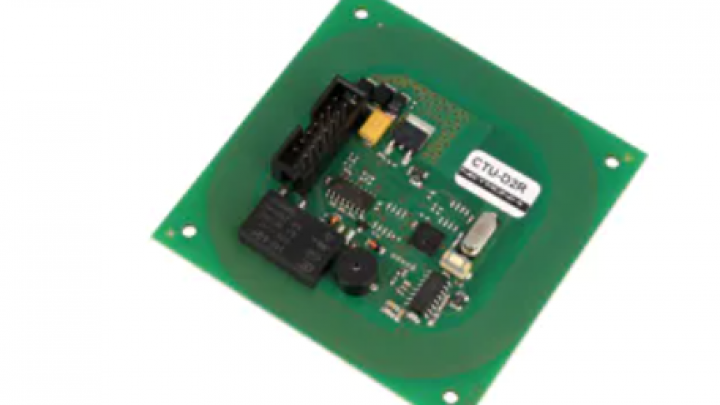

The CTU-D family of readers are OEM modules for custom applications.

The main features of the CTU-D modules are:

· support of the Unique, Q5,HID, HITAG® 1/S, and HITAG® 2 RFID standards;

· built-in antenna;

· 2 GPIO ports, maximum output current 20 mA;

· relay output with a permissible current of 2 A (48 V AC/V DC) - with the exception of CTU-D5N;

· external dimensions of 79.5 x 79.5 mm.

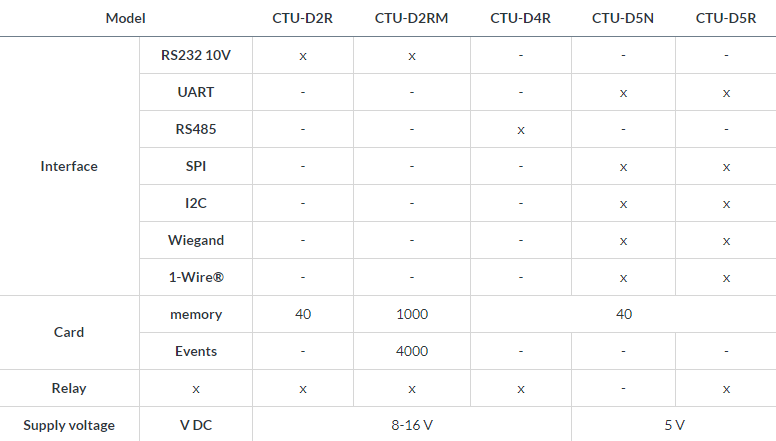

The information in the table below shows the basic differences between the offered reader models:

These devices are most often used for:

· identification of objects and people;

· entry and exit control and work time control;

· tracking of raw materials and products in complex production lines;

· tracking of objects in logistically complex supply chains;

· tracking of inventory in warehouses;

· identifying and managing parcels and luggage;

· protecting original products against counterfeiting.

Features:

-Module type RFID reader

-Power supply 5 V or 8 V -16 V DC

-Frequency 125 kHz

-Dimensions 79.5 mm x 79.5 mm

-Card memory 40 or 1000

Text prepared by: TME
